M2 Socket Head Shoulder Screw for Machinery

Price range: $0.69 through $0.73

Quantity
SKU: N/A Category: Brand:

Description

Documentation

2D Specification 3D 3D Model

Socket Head Shoulder Machine Screws (SHSS) Socket Head Shoulder Machine Screws (SHSS)

Product ID L (mm)

Shoulder Length

 d (mm)

Shoulder Diameter

 S (mm)

Thread Length

 D (mm)

Head Diameter

 H (mm)

Head Thickness

 k (mm)

Hexagon Across Flats

 t (mm)

Groove Depth

 Screwdriver Bit
Size
AA203 4 2.5 4.0 4.8 2.4 2.0 1.0 H2

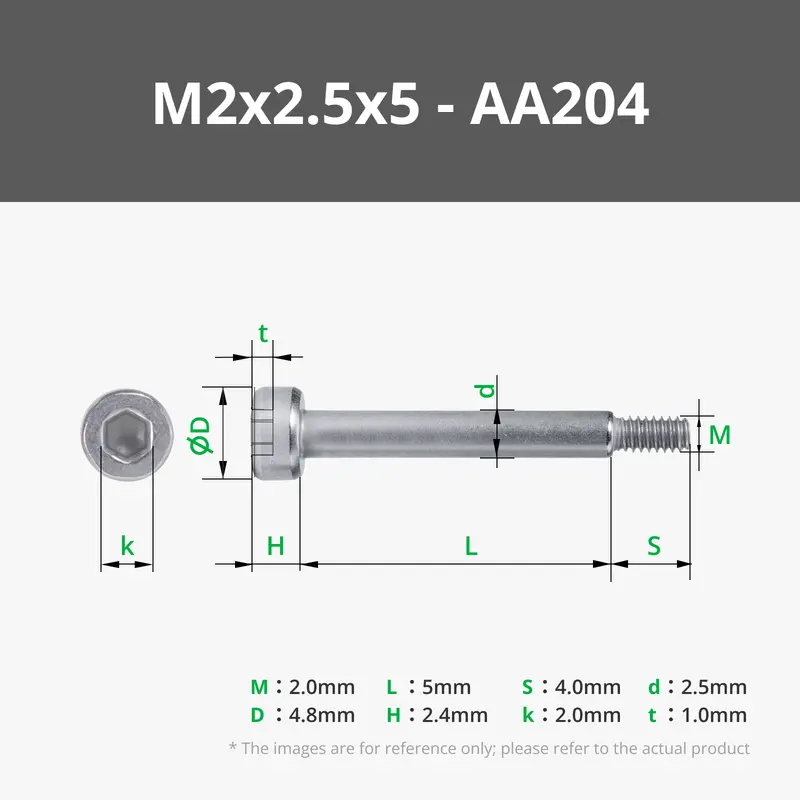

AA204 5 2.5 4.0 4.8 2.4 2.0 1.0 H2

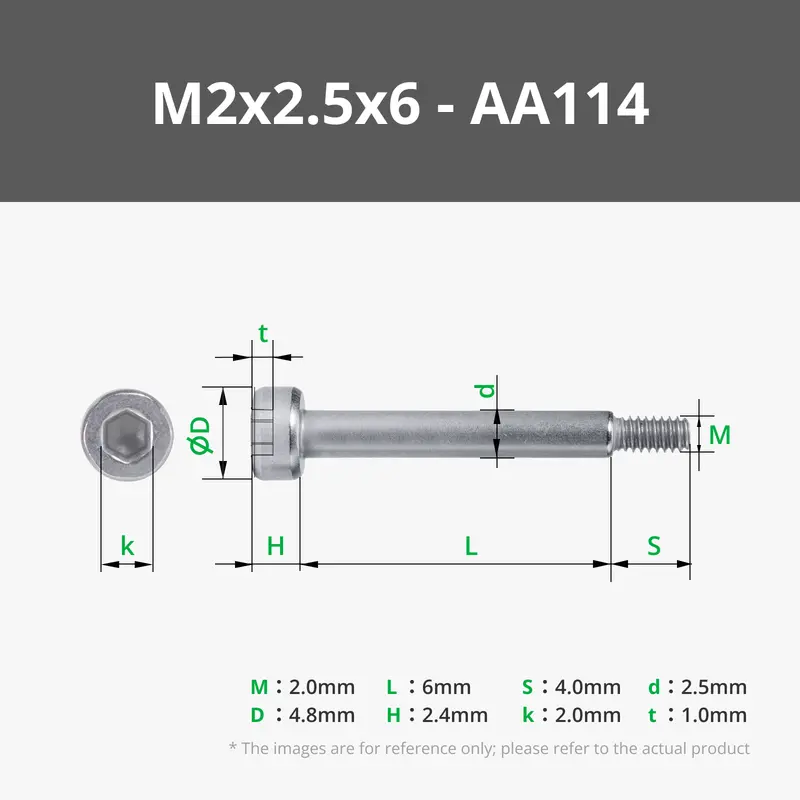

AA114 6 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA115 8 2.5 4.0 4.8 2.4 2.0 1.0 H2

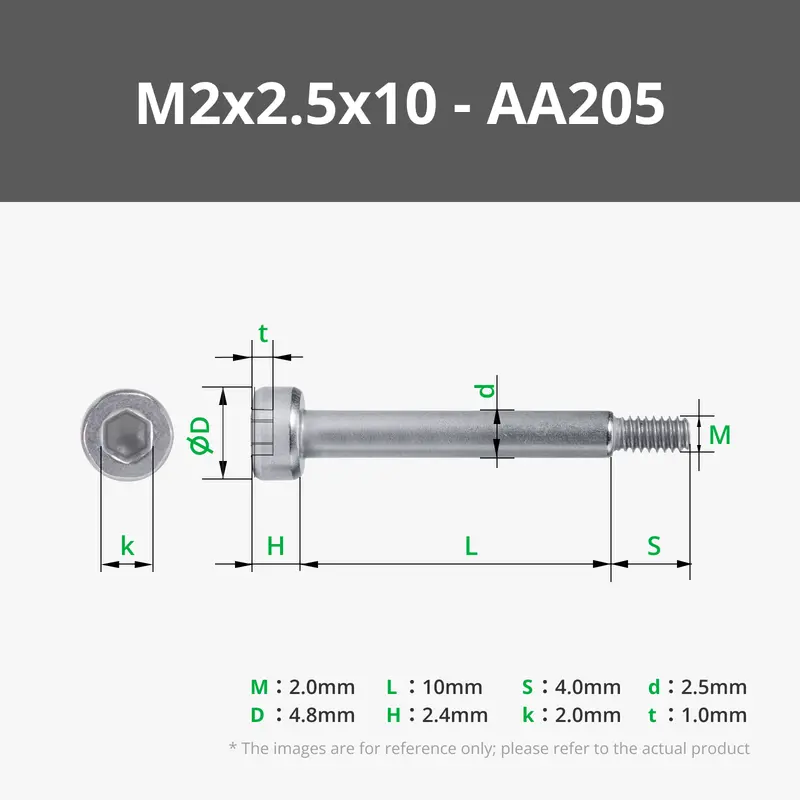

AA205 10 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA116 12 2.5 4.0 4.8 2.4 2.0 1.0 H2

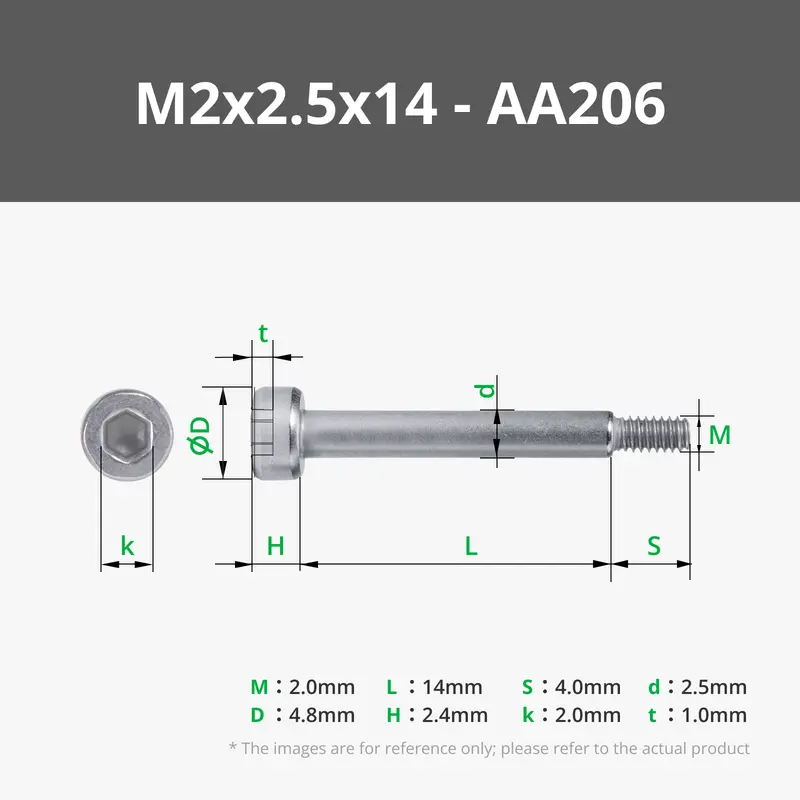

AA206 14 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA117 16 2.5 4.0 4.8 2.4 2.0 1.0 H2

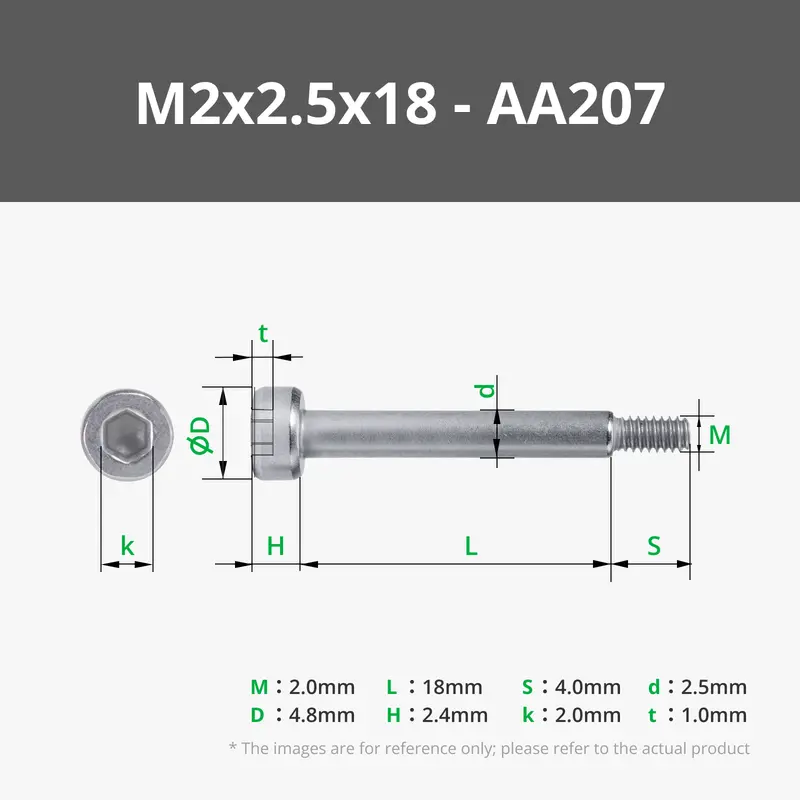

AA207 18 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA118 20 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA119 25 2.5 4.0 4.8 2.4 2.0 1.0 H2
AA120 30 2.5 4.0 4.8 2.4 2.0 1.0 H2

*Compliant with the requirements of GB 5281 – 1985 standard [Equivalent standards: ISO 7379 – 1983]

Forgot the screw specs? Just tap the Screw Gauge for sorting help.

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Surface Treatment Zinc-nickel alloy plating
Mounting Hole Shape Hex socket
Screw Type Half thread

Material Carbon steel
Thread Ridge Type Metric coarse
Color Silver

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

  • Carbon Steel Socket Head Shoulder Machine Screws (SHSS)

  • Strength grade: 4.8

  • Half thread series

  • Using a shoulder section as a bare shaft for easy mounting of bearings or other components

Explore more from our collection.

Additional information

Size

M2x2.5×4 SHSS Machine Screw (20PCS) – AA203, M2x2.5×5 SHSS Machine Screw (20PCS) – AA204, M2x2.5×6 SHSS Machine Screw (20PCS) – AA114, M2x2.5×8 SHSS Machine Screw (20PCS) – AA115, M2x2.5×10 SHSS Machine Screw (20PCS) – AA205, M2x2.5×12 SHSS Machine Screw (10PCS) – AA116, M2x2.5×14 SHSS Machine Screw (10PCS) – AA206, M2x2.5×16 SHSS Machine Screw (10PCS) – AA117, M2x2.5×18 SHSS Machine Screw (10PCS) – AA207, M2x2.5×20 SHSS Machine Screw (10PCS) – AA118, M2x2.5×25 SHSS Machine Screw (5PCS) – AA119, M2x2.5×30 SHSS Machine Screw (5PCS) – AA120
